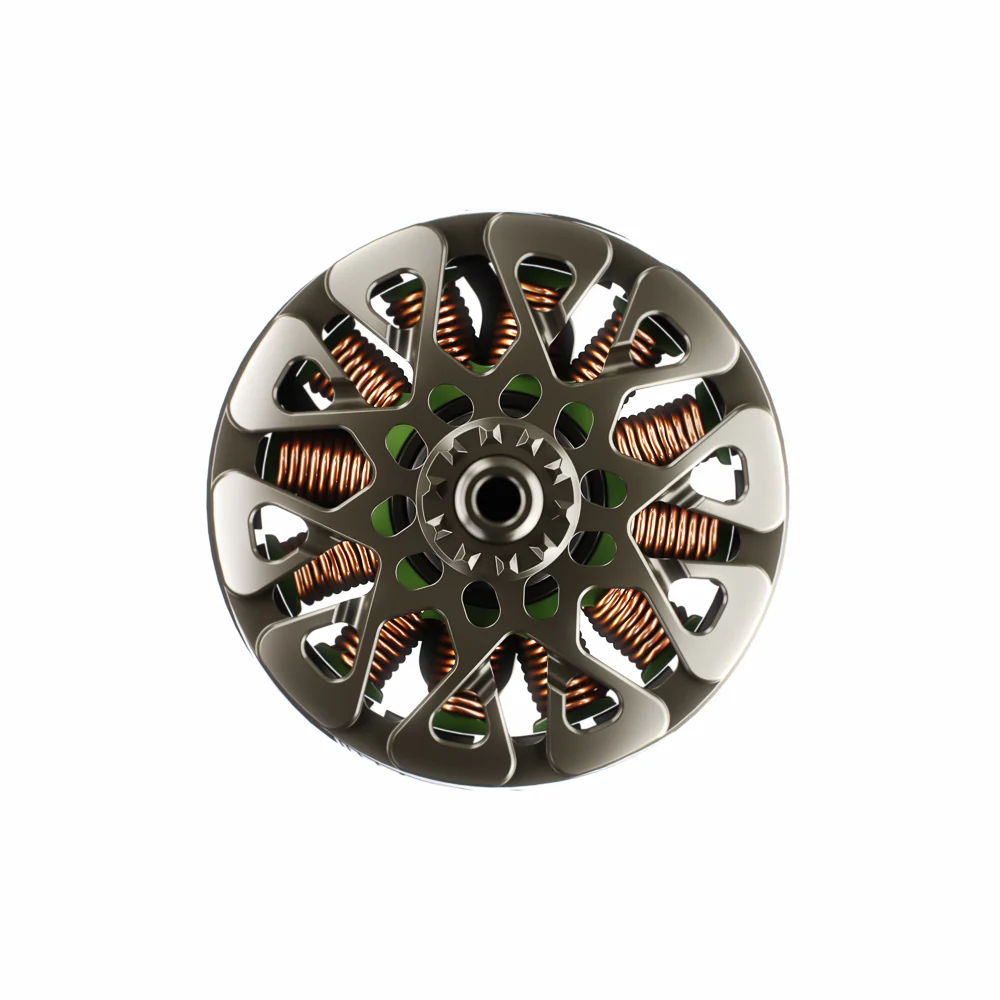

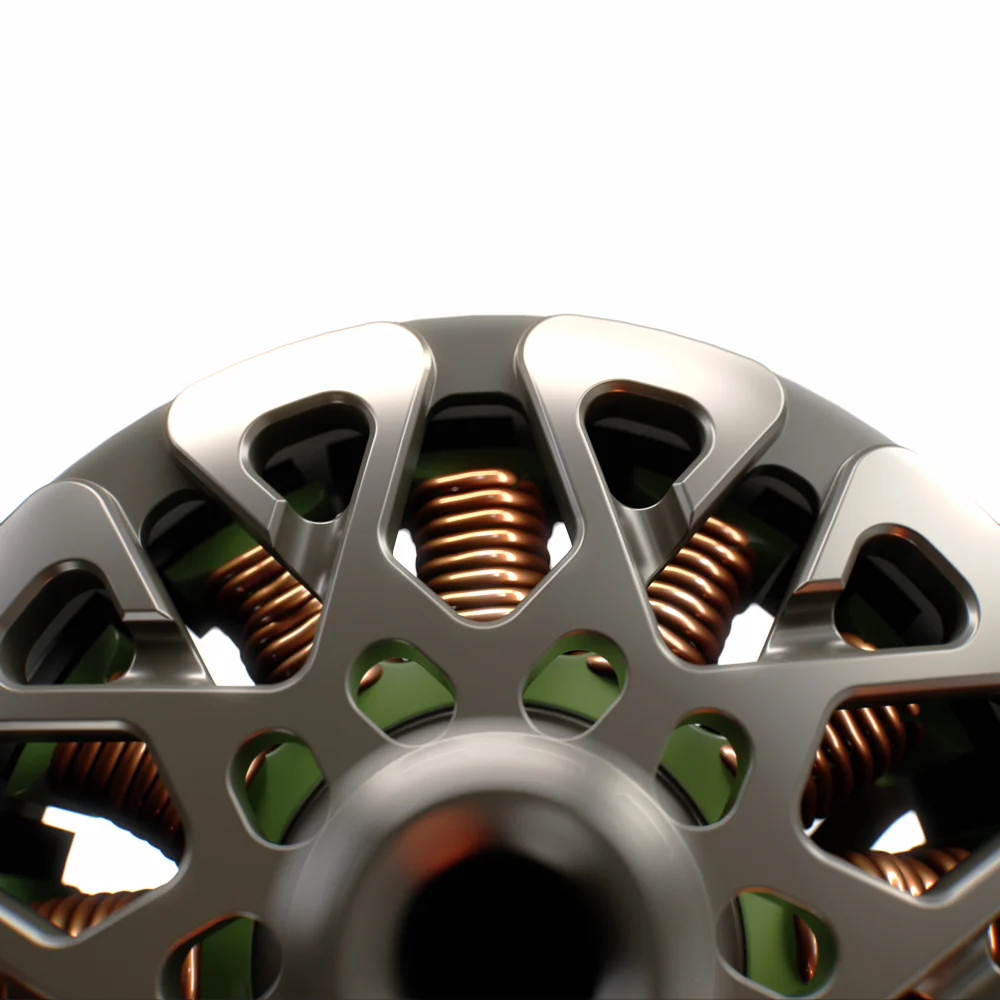

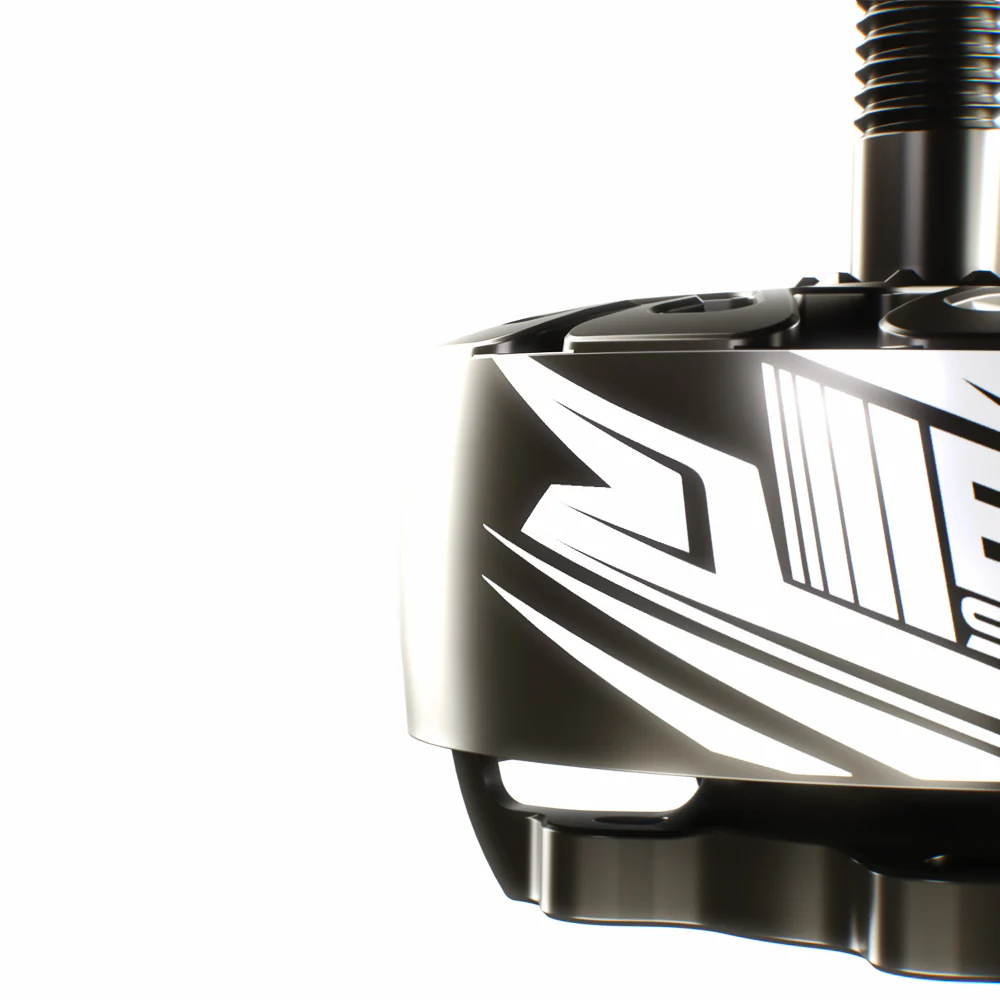

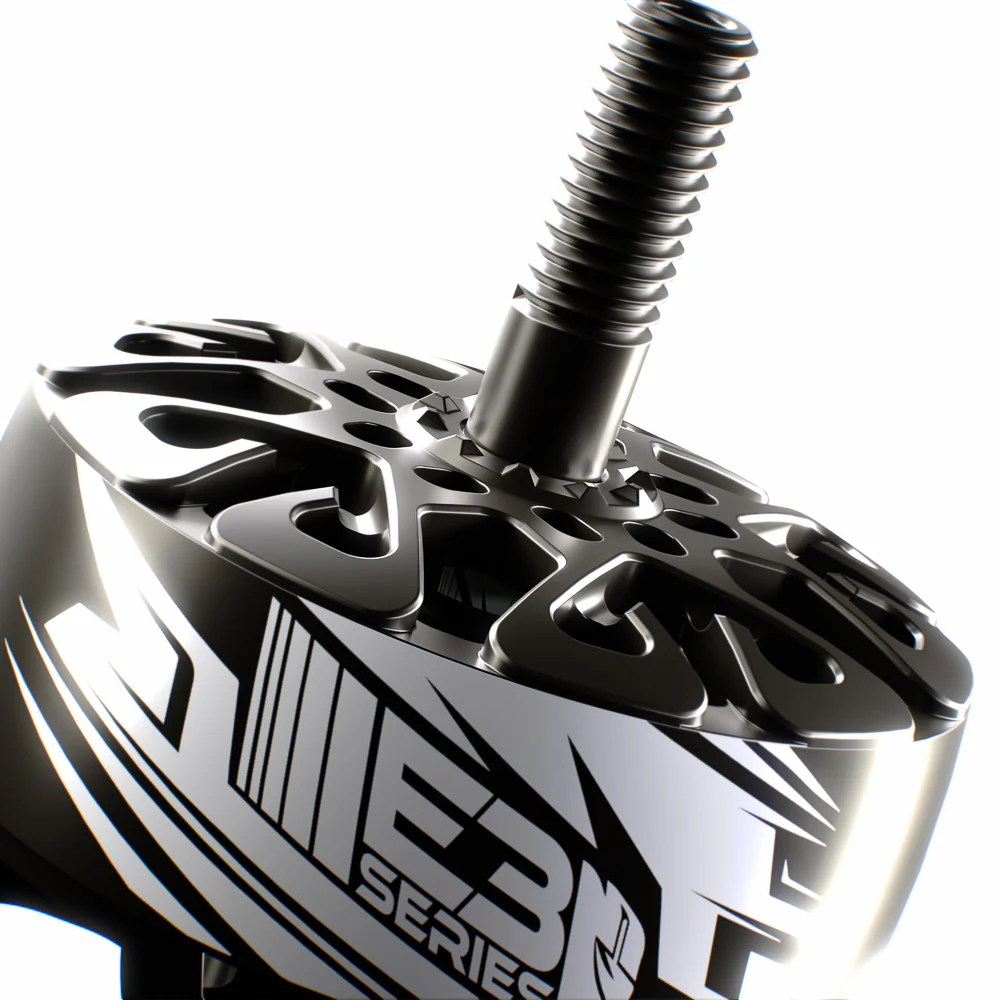

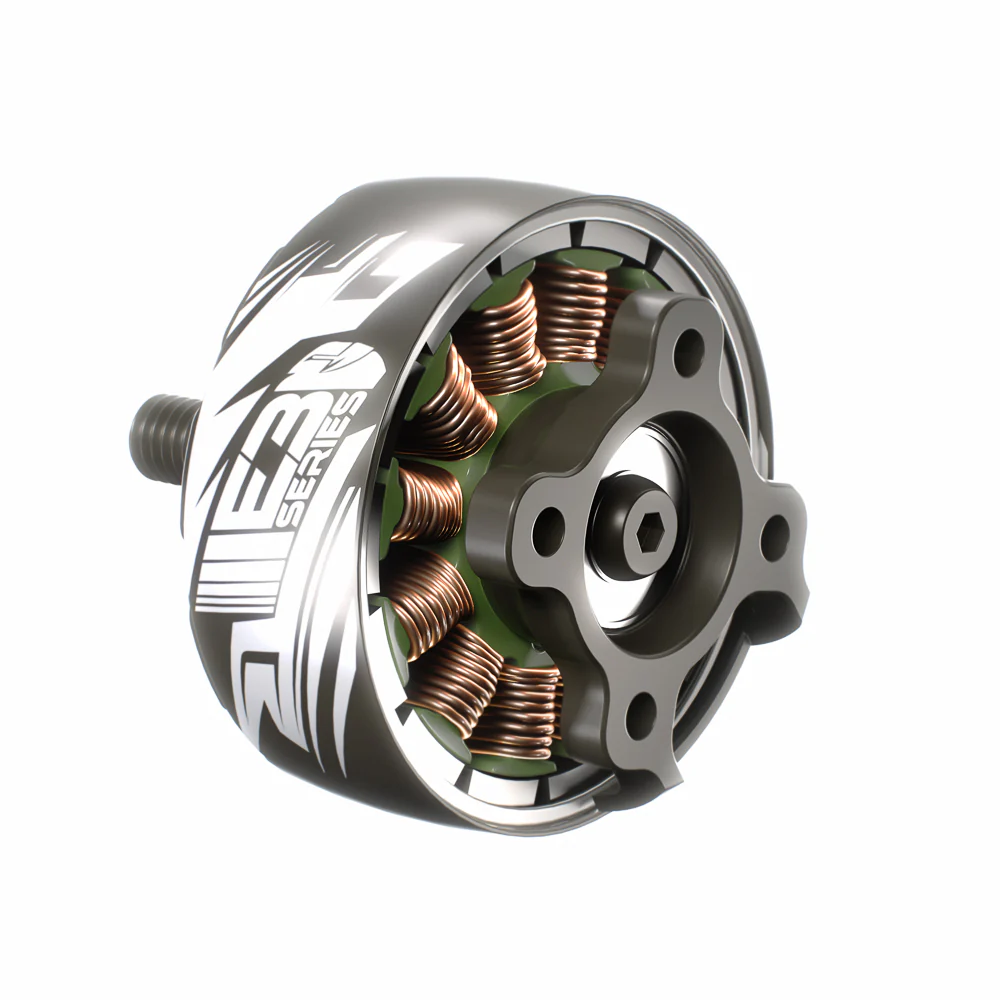

E3 Series 2808 Brushless Motor - CHOOSE KV
| Specifications | ||||
| Testltem | KV1300 | Idle Current（10V） | 1.5A | |
| Motor Dimensions | φ34.8*37mm | Internal Resistance | 56mΩ | |
| Framework | 12N14P | No.of cells | 3-6S | |
| Bearing Shaft | 5mm | Propeller | 6"-7" | |
| Lead | 18#AWG 250mm | Peak Current（6S） | 56A | |
| Weight | 53.6g(W/O Silicone Wire) | Max.Power（6S） | 1410W | |
| Testltem | KV1500 | Idle Current（10V） | 1.8A | |
| Motor Dimensions | φ34.8*37mm | Internal Resistance | 47mΩ | |
| Framework | 12N14P | No.of cells | 3-6S | |
| Bearing Shaft | 5mm | Propeller | 6"-7" | |
| Lead | 18#AWG 250mm | Peak Current（6S） | 65A | |
| Weight | 53.8g(W/O Silicone Wire) | Max.Power（6S） | 1640W | |
EMAX brushless motors are suitable for a wide range of hobby, engineering, and custom motion-control applications. They’re ideal for high-speed propulsion, precision motion control, custom cooling fans, gimbals, 3D-printed mechanisms, and STEM or engineering prototypes.
If you’re building lightweight, high-efficiency systems that need reliable power, smooth operation, and long service life, EMAX brushless motors are the go-to solution.
Original: $23.99
-70%$23.99
$7.20
Description
| Specifications | ||||
| Testltem | KV1300 | Idle Current（10V） | 1.5A | |
| Motor Dimensions | φ34.8*37mm | Internal Resistance | 56mΩ | |
| Framework | 12N14P | No.of cells | 3-6S | |
| Bearing Shaft | 5mm | Propeller | 6"-7" | |
| Lead | 18#AWG 250mm | Peak Current（6S） | 56A | |
| Weight | 53.6g(W/O Silicone Wire) | Max.Power（6S） | 1410W | |
| Testltem | KV1500 | Idle Current（10V） | 1.8A | |
| Motor Dimensions | φ34.8*37mm | Internal Resistance | 47mΩ | |
| Framework | 12N14P | No.of cells | 3-6S | |
| Bearing Shaft | 5mm | Propeller | 6"-7" | |
| Lead | 18#AWG 250mm | Peak Current（6S） | 65A | |
| Weight | 53.8g(W/O Silicone Wire) | Max.Power（6S） | 1640W | |
EMAX brushless motors are suitable for a wide range of hobby, engineering, and custom motion-control applications. They’re ideal for high-speed propulsion, precision motion control, custom cooling fans, gimbals, 3D-printed mechanisms, and STEM or engineering prototypes.
If you’re building lightweight, high-efficiency systems that need reliable power, smooth operation, and long service life, EMAX brushless motors are the go-to solution.
